Oceanus Mini ROV System

Imenco now offer a compact mini ROV system that can fit in a 12-inch diameter pipe, with high-end features including six vectorized thrusters providing lateral ROV movement and a full HD 1080p on-board camera.

Oceanus Mini ROV System

Introduction

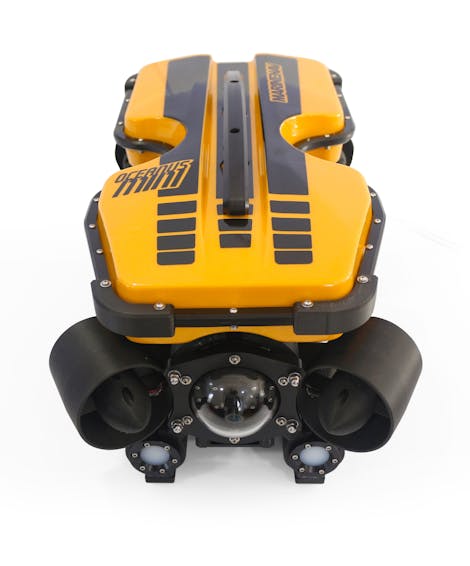

Imenco now offer a compact Oceanus Mini ROV System that can fit in a 12-inch diameter pipe, with high-end features including six vectorized thrusters providing lateral ROV movement and a full HD 1080p on-board camera.

A uniquely rugged inspection-class Oceanus Mini ROV System capable of operating to a maximum depth of 305 m (1000 ft.) and with a top speed of up to 4 knots, the Oceanus Mini is ideal for performing inspections in confined areas like pipelines and holding tanks. The use of lightweight materials and a reduced footprint makes this mini ROV unit incredibly easy to transport and operate.

A smaller size does not mean this mini ROV is lacking in power and versatility. Core construction of marine-grade aluminum and the same robust engineering standards found in our larger ROV vectorized thruster system ensures this system will stand-up to the toughest tests.



 Standard Features:

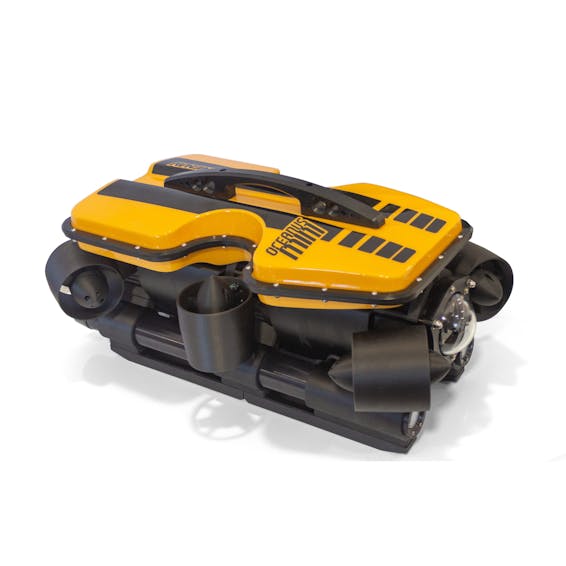

  • Powerful vectorized thruster design provides lateral movement
  • Lightweight, compact design ideal for pipe and water tank inspections
  • ROV weight of 10.8 kg (23.8 lbs)
  • Power over tether design
  • Up to 4 knot top speed×
  • 2 x 1500 lumen lights
  • 1080p high definition camera

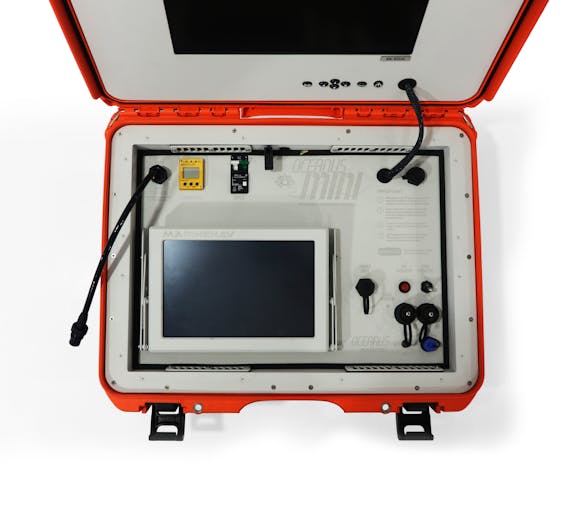

  • 18.5″ primary video screen topside
  • Depth rating of 305m (1000ft)
  • Compatible with Oceanus Pro topside control system and many Oceanus Pro accessories
  • Limited 2-year warranty and MarineNav’s
    Peace of Mind Guarantee*
Imenco MarineNav datasheet Oceanus Mini ROV System

Specifications

Specifications

Certifications ISO 9001: 2015
Operating Environment Fresh or salt water, 0-50oC (32-122o F)
ROV movement and control Full depth, horizontal and lateral movement: Auto depth, Heading hold and ROV stabilize modes
Depth Rating 305 m (1000 ft)
Maximum Speed 4 kn
Topside Unit Weight 18.05 kg (39.8 lbs)
ROV Weight 10.8 kg (23.8 lbs)
Approximate Total Shipping Weight† 38.56 kg (85.00 lbs)
ROV Dimensions 521 mm (20.5″) long, 279 mm (11.5″) wide, 273 mm (10.75″) height
Topside Unit Housing Material Ultra high density polyethylene, neoprene o-ring and ABS latches
ROV Housing Material Marine grade aluminum.
Lights 2 x 1500 Lumen front
Cameras Internal Front: 1080p with tilt control
Camera Tilt Angle +/- 120o Pitch (vertical rotation)
Camera Focus Range Fixed focus 4” to infinity
Camera Field of View 120o field of view
Primary Display 18.5″ TFT active matrix panel, 1600 nits brightness (full daylight readable), 1920 x 1080 resolution.
Secondary Display 10.1″ TFT Touch active matrix panel, 1000 nits brightness (full daylight readable), 1280 x 800 resolution
Video Output HDMI video output
Data Storage 500 GB solid state drive topside, 32 GB solid state ROV
Topside Unit Software OS Linux OS

(MarineNav Proprietary software interface)

IMU (Sensors) Always on, Integrated with accelerometer & magnetometer measuring telemetry including tilt, roll, pitch, and heading, auto heading, auto depth functionality
Depth Gauge Calibrated in meters or feet (user selectable)
Topside Power Input: 100/240 V AC 50/60 Hz, System fully operational in 60 seconds
ROV Power Power over tether
ROV Control MarineNav Hand Controller (IP 65)
Topside Control Case Rugged waterproof case, transport requires one person. IP 65 when closed, IP 62 when open
Auxiliary Ports 1 auxiliary port: capable of 1 x RS485 / Manip / 15VDC)
